Product Details
Place of Origin: China
Brand Name: LENGE
Certification: ISO/CE
Model Number: LATM288
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Wooden cases
Delivery Time: 15-20 Days
Payment Terms: T/T, L/C
Supply Ability: 300 Sets per Month
The Outer Size: |
Customized |
Wind Speed: |
0.45m/s ± 20% |
Warranty: |
1 Year |
Application: |
Pharmaceutical, Clean Room |
The Outer Size: |
Customized |
Wind Speed: |
0.45m/s ± 20% |
Warranty: |
1 Year |
Application: |
Pharmaceutical, Clean Room |

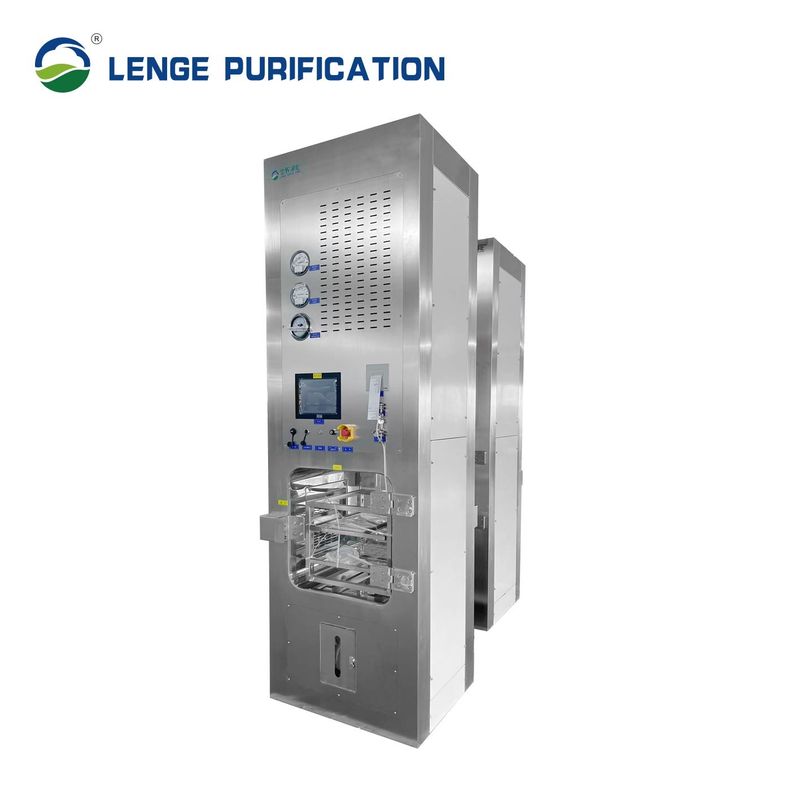

VHP Sterilization & Biodecontamination Vaporized Hydrogen Peroxide Pass Box Cabinent Customization
Material: SUS304/316L Stainless Steel
Vaporization Power: Clean Compressed Air
Sterilization Efficacy: 6-log
Sterilization Time: <120 min.
Cleanliness Class: Class B
Power Supply: 380V, 50Hz,3kW
VHP (Vaporized Hydrogen Peroxide) Decontamination Chamber is normally used for sterilization of outer surface of any object, which is not suitable for AUTOCLAVE & compatible with HYDROGEN PEROXIDE in vapour phase.
Operation Principle
A built-in VHP generator heats up the hydrogen peroxide, converting it from liquid to vapour, then blown into the chamber, creating a lethal environment capable of killing bacteria, viruses and fungi. Each step of the process is fully controlled, guaranteeing perfect performance.
VHP Decontamination Chamber is designed for two different zone of area, for transferring of product from lower classified zone to higher classified zone (Non– sterile area to Sterile area), without effecting the balancing of respective zone, containment free product transfer to higher classified zone. The Unit is especially suitable for GMP regulated pharmaceutical companies manufacturing drugs aseptically.
Characteristic & Features
Sterilization process <120min. to realize multiple sterilization operations one day.
Fully automatic operate, menu can be saved and invoked.
Emergency Stop.
Adopts clean compressing air for vaporization power which can reduce the impact of the pressure differential when taking air from the room.
Decomposition filter can effectively reduce the concentration of VHP remain Reduce the impact on environment and personnel.
Through up down side to reduce the inspection space.
Corner sterilization pass box which will increase factory space utilization ratio, and improve the distribution.
Very low hydrogen peroxide consumption.
| Model | Outer Size W×D×H (mm) |
Inner Size W'×D'×H' (mm) |
Nominal Volume (L) |
Cleanliness Class | Sterilization Efficacy |
Power (kW) |
| LATM288 | 1200×800×2000 | 600×800×600 | 288 | Class B | 6-log | 3 |
| LATM512 | 1400×800×2200 | 800×800×800 | 512 | |||
| LATM1000 | 1600×1060×2100 | 1000×1000×1000 | 1000 | |||
| LATM1440 | 1600×1260×2300 | 1000×1200×1200 | 1440 |
Note: The specifications listed in the above table are only for customers' reference. It is mostly designed and manufactured according to customers' URS.
| Item | Technical Specification |
| Material | SUS304/316L Stainless Steel |
| Application | Pharmaceuticals, Food & Beverage, Electronics |
| Structure | Fully Enclosed |
| Sterilization Time | <120 min. |
| Vaporization Power | Clean Compressed Air |
| Sterilization Efficacy | 6-log |
| Sterilization Media | 30% Medical Grade H2O2 |
| Maintenance Mode | Side Access/Up-Down Access |
| Inlet Air Purification | H14 |
| Cycling Mode | Direct Exhaust |
| Validation Document | 4Q/FAT/SAT |
| System Monitoring | Increase concentration |
| Soft System | Display the current step, remaining time and working status of main parts, time setting, system parameter setting, alarm information, online data monitoring, manual and automatic switching, sterilization batch input, validation information, PDF report, formula management |
Engineering Drawing
Sterilization Process & Vaporizer Schematic Diagram
