Product Details
Place of Origin: China
Brand Name: LENGE
Certification: CE / ISO
Model Number: LCTW
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Wooden Cases
Delivery Time: 15 - 20 Days
Payment Terms: T/T, L/C
Supply Ability: 500 Set per Month
Material: |
SUS 304 |
Rated Air Velocity: |
0.45 ± 20 % |
Inner Size: |
400 X 400 X 1200 |
Power: |
0.2 KW |
Noise: |
≤ 65 DB |
Layer: |
Double |
Material: |
SUS 304 |
Rated Air Velocity: |
0.45 ± 20 % |
Inner Size: |
400 X 400 X 1200 |
Power: |
0.2 KW |
Noise: |
≤ 65 DB |
Layer: |
Double |

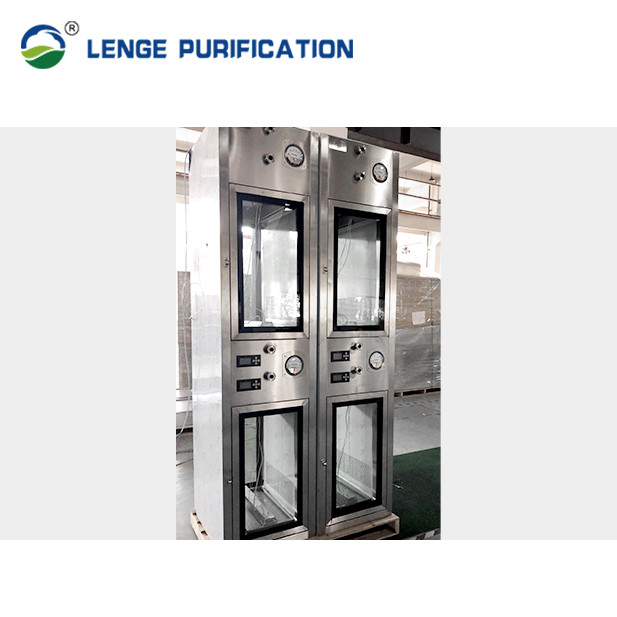

400 x 400 x 1200 Double - Layer Glass Door Dynamic Pass Box With Control Panel
Dynamic pass box is an equipment used for transfer of goods, and could segregate the air on both sides of the room.
It is installed at the entrance to Clean Room in order to minimize the amount of particulate contamination entering the
Clean Room.
| Model | LCTW3 - 040040 | LCTW4 - 050050 | LCTW6 - 060060 | LCTW6 - 060080 | LCTW8 - 070070 | LCTW10 - 080080 | LCTW16 - 100100 |
| Material | SUS 304/316L Stainless Steel | ||||||
| Type | Corner Type, Three - door Type, Double - layer Type, Customized | ||||||
|
Outer Size W x D x H |
620 x 460 x 950 | 720 x 560 x 1050 | 820 x 660 x 1150 | 820 x 660 x 1350 | 920 x 760 x 1250 | 1020 x 860 x 1350 | 1220 x 1060 x 1600 |
|
Inner Size W'×D'×H' |
400×400×400 | 500×500×500 | 600×600×600 | 600×600×800 | 700×700×700 | 800×800×800 | 1000×1000×1000 |
| Weight (KG) | 80 | 100 | 130 | 160 | 180 | 210 | 250 |
| Custom Size | Available | Available | Available | Available | Available | Available | Available |
| No. of Door | 2 - 4 | ||||||
| Door Material | Tempered Glass | ||||||
| Interlocking | Mechanical / Electronic | ||||||
| Control Mode | Automatic / Manual Operation | ||||||
| Design of Working Area |
Integrated Circular Arc Corner | ||||||
| Rated Air Velocity (m / s) |
0.45 ± 20 % | ||||||
|
UV Lamp (W) |
6 × 2 | 8 × 2 | 8 × 2 | 8 × 2 | 15 × 2 | 20 × 2 | 20 × 2 |
|
Noise (dB) |
65 | ||||||
| Power Supply | 220V, 50HZ | ||||||
| Power | 0.2kW | 0.2kW | 0.2kW | 0.2kW | 0.2kW | 0.3kW | 0.3kW |
Note: The above specifications are only for customers' reference. It is mostly designed and manufactured according to customers' URS.
Tempered glass doors provide a clear view of the internal chamber.
Variety of accessories and dimensions.
Containment System:
Manufactured for the most demanding controlled environment applications.
Tempered glass doors provide visibility into the interior.
Stainless steel frame, and double-deck 5mm thick tempered glass door.
